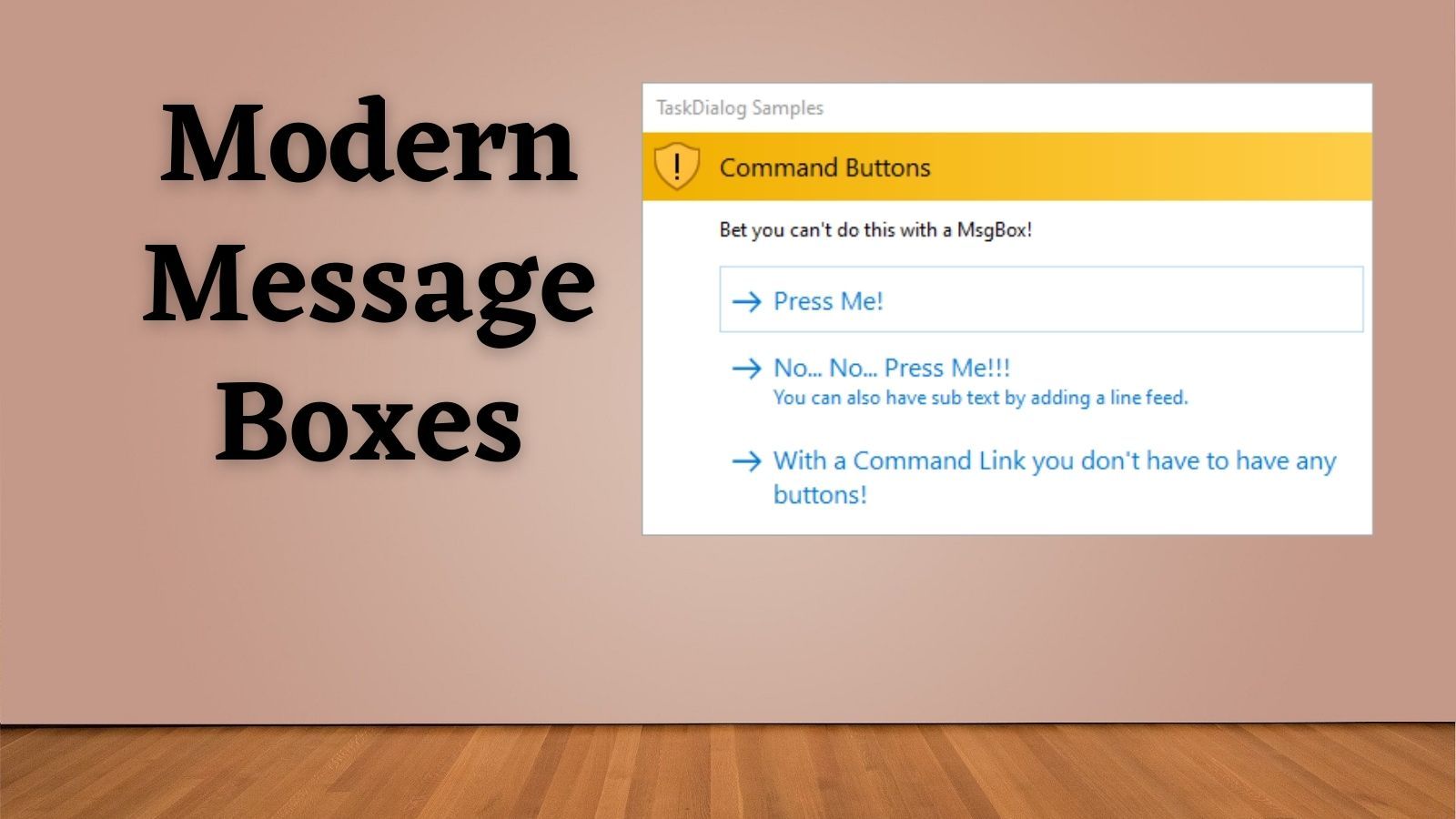

Modern Message Boxes in Access
These modern message boxes from Kevin Bell will help set your Access applications apart from the crowd.
![Modern Message Boxes in Access](/content/images/size/w2000/2022/01/Modern-Message-Boxes.jpg)
If you are looking to modernize the look and feel of your Access applications, sprucing up the message boxes that you use will have a big impact.

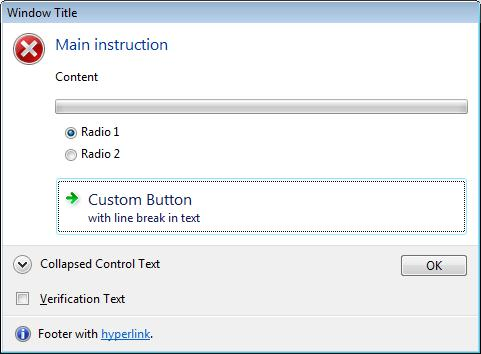

With Windows Vista (remember when that was still new?), Microsoft introduced task dialogs as part of the Common Controls library (comctl32.dll). Here's an example of a task dialog from the Microsoft documentation:
![](https://nolongerset.com/content/images/2022/01/image-12.png)
As this is a COM library, its properties and methods are available to us via API calls in VBA. Here are the two primary functions that allow us to create these forms:
Private Declare PtrSafe Function TaskDialog Lib "comctl32.dll" ( _
ByVal hwndParent As LongPtr, _
ByVal hInstance As LongPtr, _
ByVal pszWindowTitle As LongPtr, _
ByVal pszMainInstruction As LongPtr, _
ByVal pszContent As LongPtr, _
ByVal dwCommonButtons As Long, _
ByVal pszIcon As LongPtr, _
pnButton As Long) As Long
Private Declare PtrSafe Function TaskDialogIndirect Lib "comctl32.dll" ( _
pTaskConfig As TASKDIALOGCONFIG, _
pnButton As Long, _
pnRadioButton As Long, _
pfVerificationFlagChecked As Boolean) As Long
To say the above code is just the tip of the iceberg, though, is a major understatement.
The full code required to get even a simple task dialog working requires declaration of tons of constants, user-defined types, enums, and additional API function calls. Plus, you need to make sure that everything works in both 32-bit and 64-bit versions of VBA.
Whew, that sounds like a lot of work!
Work Smarter Not Harder
As it turns out, it IS a lot of work!
The wonderful news, though, is that someone has already done all of that hard work. Actually, some ones have done all that hard work.
- Jon Johnson (a.k.a., fafalone) posted the original VB6 code at vbforums
- Kevin Bell (a.k.a., Kevin Bell) converted the code for VBA use at accessui.com
- Rob Cooper and Shane Groff helped Kevin Bell along the way
"If I have seen further it is by standing on the shoulders of giants."
- Sir Isaac Newton
Sample Code
The only code you really need to worry about is contained in a single, easy-to-work-with class module, cTaskDialog
.
The sample code below can be used to generate the task dialog that follows:
Dim TaskDialog As cTaskDialog
Set TaskDialog = New cTaskDialog
With TaskDialog
.Init
.Flags = TDF_USE_COMMAND_LINKS
.MainInstruction = "Command Buttons"
.Content = "Bet you can't do this with a MsgBox!"
'.CommonButtons = TDCBF_CANCEL_BUTTON
.IconMain = TD_SHIELD_WARNING_ICON
.Title = "TaskDialog Samples"
.AddCustomButton 201, "Press Me!"
.AddCustomButton 202, "No... No... Press Me!!!" & vbLf & "You can also have sub text by adding a line feed."
.AddCustomButton 203, "With a Command Link you don't have to have any buttons!"
.ShowDialog
Debug.Print "User pressed: "; .ResultMain
End With
![](https://nolongerset.com/content/images/2022/01/image-13.png)
Requirements
To run the code, you will need a reference to the DAO library (Tools > References > "Microsoft Office 16.0 Access database engine Object Library").
You will also need to import the following code modules into your project:
cTaskDialog
(class module)basTaskDialogGlobal
basGDIPlus_Lib
basDialogWrapper
(optional)
All of these modules are in the sample database available for download on Kevin Bell's site, https://accessui.com/Products/VBATaskDialog

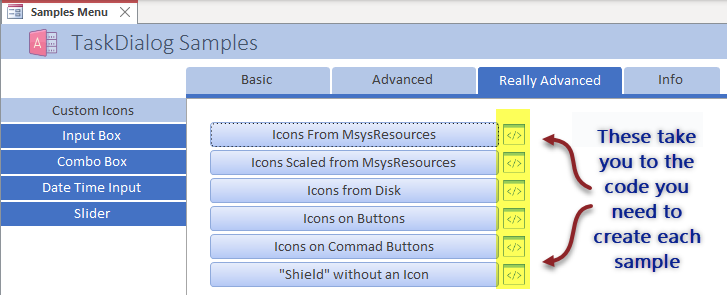

Kevin's database also has a ton of other custom dialog samples along with convenient buttons that jump you right to the code used to generate each sample.
![](https://nolongerset.com/content/images/2022/01/image-15.png)
The cost for all this goodness? FREE!!! (Just be sure to leave the copyright notices in place 😉)
